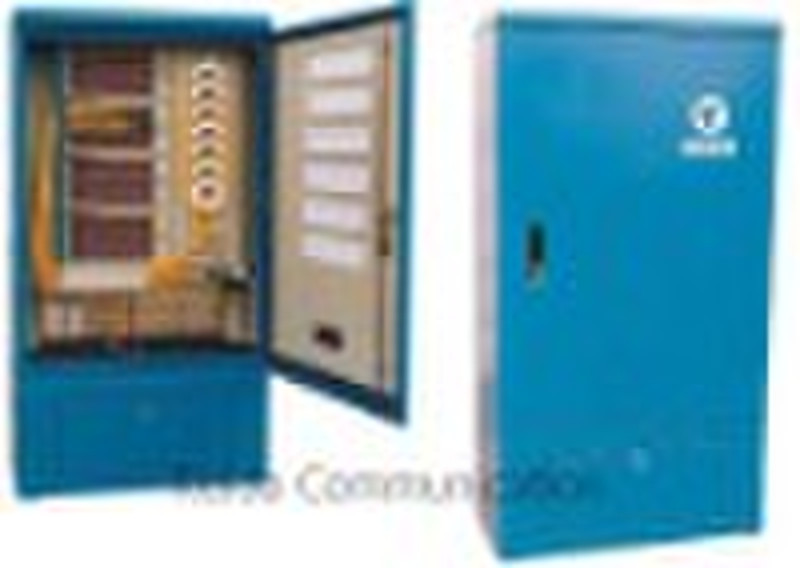

outdoor optical cable cross connection cabinet

1. Stainless steel materials(optional) with electrostatic powder coating, corrosion-resistant and anti-aging properties. 2.fusion and distribution integration module design, 12 core per mudule, make a big capacity. 3. easilyfrontal operation 4.function include: distribution,bonding, storage, adjust, etc. Sealing performance meets the IP65-level requirements of GB4208 standard, suitable for outdoor distribution. 5.Cabinet with high base,big space which is easy for the cable entry, easy and convenient to install. Safely grounding. 6. optical cables, wire jumper and storage unit are all separately. Clear mark for bonding and distribution. 7. FC or SC adapter are installed 40 degree dip angle which prevents eyes from arc light and also convenient forribbon and non-ribbon optical fibersfixing. Radius of curvaturefor opticalfiber≥30mm. 8. hanging or flooring installation working condition: temperature: -40°C +60°C relative humidity: LESS THAN 95%(at +40°C) atmospheric pressure: 70kpa 106kpa technical details: protection: IP56 connecter wastage:less than 0.5 dB insert wastage: less than 0.2 dB echo wastage: more than 45 dB plug in/ pull out : more than 1000 times voltage resistance between cabinet body and grounding: ≥3000V(DC)/1min non-breakdown, non-flash-over.
